ENG ELECTRIC CO.,LTD の標準スイッチングACアダプターの販売を致します。
幅広いラインナップを取り揃えております。
ご注文について
・量産ご注文はmin1000台/Lot以上のご注文お願い致します。＊ご評価・試作用サンプルは別途ご相談下さい。
・「お問合せのページ」から個別のご連絡お願い致します。
スイッチングACアダプター一覧
＊「詳細資料」はPDF形式で開きます。
＊一覧表に記載している定格以外の仕様、各国安全規格でも対応可能な場合がございます。
更に詳しい情報が必要な時には、お気軽にご連絡下さい。
[お問合せのページ](記載されている仕様は予告なしに変更することがあります。)
【情報機器＆AV機器用】 IEC/EN/UL/CUL 62368 & 60950対応
| 出力ワット | 型番 | 詳細資料 | 入力電圧 | 出力電圧 | 出力電流 | PSE取得状況(2021.10月) | 備考 |
| 3W | 6A-031WU** | AC90V～264V | DC5V | 0.6A | PSE未取得/相談可 | WALL-MOUNT, UL/PSE AC PIN | |
| 5W | 6A-051WU** | AC90V～264V | DC5V | 1A | ○ | WALL-MOUNT, UL/PSE AC PIN | |
| 6A-052WU**B | AC90V～264V | DC5V | 1A | ○ | WALL-MOUNT,USB Inlet | ||
| 6A-054WP05B | AC90V～264V | DC5V | 1A | ○ | WALL-MOUNT,USB Inlet | ||
| 6W | 6A-061WU** | AC90V～264V | DC5V | 1A | ○ | WALL-MOUNT, UL/PSE AC PIN | |
| DC5V | 1.2A | ||||||
| DC5.95V | 1A | ||||||
| DC9V | 0.67A | ||||||
| DC12V | 0.5A | ||||||
| DC15V | 0.4A | ||||||
| DC18V | 0.33A | ||||||
| DC24V | 0.25A | ||||||
| 6A-061WP** | AC90V～264V | DC5V | 1A | ○ | WALL-MOUNT, Interchangeable | ||
| DC5V | 1.2A | ||||||
| DC5.95V | 1A | ||||||
| DC9V | 0.67A | ||||||
| DC12V | 0.5A | ||||||
| DC15V | 0.4A | ||||||
| DC18V | 0.33A | ||||||
| DC24V | 0.25A | ||||||
| 10W | 6A-101WU05B | AC90V～264V | DC5V | 2A | ○ | WALL-MOUNT, USB Inlet | |
| 6A-104WP05B | AC90V～264V | DC5V | 2A | ○ | WALL-MOUNT,Interchangeable, USB Inlet | ||
| 12W | 6A-121WU** | AC90V～264V | DC5V | 2A | ○ | WALL-MOUNT, UL/PSE AC PIN | |
| DC5.95V | 2A | ||||||
| DC12V | 1A | ||||||
| DC24V | 0.5A | PSE未取得/相談可 | |||||
| DC48V | 0.25A | PSE未取得/相談可 | |||||
| 6A-121WP** | AC90V～264V | DC5V | 2A | ○ | WALL-MOUNT, Interchangeable | ||
| DC5.95V | 2A | ||||||
| DC12V | 1A | ||||||
| DC24V | 0.5A | PSE未取得/相談可 | |||||
| DC48V | 0.25A | PSE未取得/相談可 | |||||
| 6A-122WU** | AC90V～264V | DC5V | 2A | ○ | WALL-MOUNT, Plug Type | ||
| DC9V | 1.1A | ||||||
| DC12V | 1A | ||||||
| DC15V | 0.8A | ||||||
| DC24V | 0.5A | PSE未取得/相談可 | |||||
| 15W | 6A-151DA** | AC90V～264V | DC5V | 2A | ○ | DESKTOP, Inlet C8 | |
| DC5V | 2.5A | ||||||
| DC5.95V | 2.1A | ||||||
| DC9V | 1.7A | ||||||
| DC12V | 1A | ||||||
| DC12V | 1.25A | ||||||
| DC15V | 1A | ||||||
| DC24V | 0.625A | PSE未取得/相談可 | |||||
| 16W | 6A-161WU** | AC90V～264V | DC5V | 2.6A | ○ | WALL-MOUNT, UL/PSE AC PIN | |
| DC9V | 1.7A | ||||||
| DC12V | 1.25A | ||||||
| DC15V | 1A | ||||||
| DC18V | 0.84A | ||||||
| DC20V | 0.75A | ||||||
| DC24V | 0.63A | ||||||
| 6A-161WP** | AC90V～264V | DC5V | 2.6A | ○ | WALL-MOUNT, Interchangeable | ||
| DC9V | 1.7A | ||||||
| DC12V | 1.25A | ||||||
| DC15V | 1A | ||||||
| DC18V | 0.84A | ||||||
| DC20V | 0.75A | ||||||
| DC24V | 0.63A | ||||||
| 18W | 6A-181WU** | AC90V～264V | DC5V | 3A | ○ | WALL-MOUNT, UL/PSE AC PIN | |
| DC9V | 2A | ||||||
| DC12V | 1.5A | ||||||
| DC15V | 1.2A | ||||||
| DC18V | 1A | ||||||
| DC20V | 0.9A | ||||||
| DC24V | 0.75A | ||||||
| 6A-181WP** | AC90V～264V | DC5V | 3A | ○ | WALL-MOUNT, Interchangeable | ||
| DC9V | 2A | ||||||
| DC12V | 1.5A | ||||||
| DC15V | 1.2A | ||||||
| DC18V | 1A | ||||||
| DC20V | 0.9A | ||||||
| DC24V | 0.75A | ||||||
| 6A-182DA** | AC90V～264V | DC5V | 3A | ○ | DESKTOP, Inlet C8 | ||
| DC5V | 3.2A | ||||||
| DC9V | 2A | ||||||
| DC12V | 1.5A | ||||||
| DC15V | 1.2A | ||||||
| DC24V | 0.75A | PSE未取得/相談可 | |||||
| 6A-182DB** | AC90V～264V | DC5V | 3A | ○ | DESKTOP, Inlet C14 | ||
| DC5V | 3.2A | ||||||
| DC9V | 2A | ||||||
| DC12V | 1.5A | ||||||
| DC15V | 1.2A | ||||||
| DC24V | 0.75A | PSE未取得/相談可 | |||||
| 6A-182DN** | AC90V～264V | DC5V | 3A | ○ | DESKTOP, Inlet C6 | ||
| DC5V | 3.2A | ||||||
| DC9V | 2A | ||||||
| DC12V | 1.5A | ||||||
| DC15V | 1.2A | ||||||
| DC24V | 0.75A | PSE未取得/相談可 | |||||
| 20W | 6A-201DA** | AC90V～264V | DC5V | 4A | ○ | DESKTOP, Inlet C8 | |
| DC5.95V | 3A | ||||||
| 6A-201DB** | AC90V～264V | DC5V | 4A | ○ | DESKTOP, Inlet C14 | ||
| DC5.95V | 3A | ||||||
| 6A-201DN** | AC90V～264V | DC5V | 4A | ○ | DESKTOP, Inlet C6 | ||
| DC5.95V | 3A | ||||||
| 24W | 6A-241DA** | AC90V～264V | DC12V | 2A | ○ | DESKTOP, Inlet C8 | |
| DC15V | 1.6A | ||||||
| DC24V | 1A | PSE未取得/相談可 | |||||
| 6A-241DB** | AC90V～264V | DC12V | 2A | ○ | DESKTOP, Inlet C14 | ||
| DC15V | 1.6A | ||||||
| DC24V | 1A | PSE未取得/相談可 | |||||
| 6A-241DN** | AC90V～264V | DC12V | 2A | ○ | DESKTOP, Inrlet C6 | ||
| DC15V | 1.6A | ||||||
| DC24V | 1A | PSE未取得/相談可 | |||||
| 6A-242WU** | AC90V～264V | DC12V | 2A | ○ | WALL-MOUNT, UL/PSE AC PIN | ||
| DC15V | 1.6A | ||||||
| DC24V | 1A | ||||||
| 6A-242WP** | AC90V～264V | DC12V | 2A | ○ | WALL-MOUNT, Interchangeable | ||
| DC15V | 1.6A | ||||||
| DC24V | 1A | ||||||
| 30W | 6A-301DA** | AC90V～264V | DC12V | 2.5A | ○ | DESKTOP, Inlet C8 | |
| DC15V | 2A | ||||||
| DC19V | 1.6A | ||||||
| DC24V | 1.25A | ||||||
| 6A-301DB** | AC90V～264V | DC12V | 2.5A | ○ | DESKTOP, Inlet C14 | ||
| DC15V | 2A | ||||||
| DC19V | 1.6A | ||||||
| DC24V | 1.25A | ||||||
| 6A-301DN** | AC90V～264V | DC12V | 2.5A | ○ | DESKTOP, Inlet C6 | ||
| DC15V | 2A | ||||||
| DC19V | 1.6A | ||||||
| DC24V | 1.25A | ||||||
| 6A-301WU** | AC90V～264V | DC12V | 2.5A | ○ | WALL-MOUNT, UL/PSE AC PIN | ||
| DC15V | 2A | ||||||
| DC19V | 1.6A | PSE未取得/相談可 | |||||
| DC24V | 1.25A | PSE未取得/相談可 | |||||
| 6A-301WP** | AC90V～264V | DC12V | 2.5A | ○ | WALL-MOUNT, Interchangeable | ||
| DC15V | 2A | ||||||
| DC19V | 1.6A | PSE未取得/相談可 | |||||
| DC24V | 1.25A | PSE未取得/相談可 | |||||
| 40W | 6A-401DA** | AC90V～264V | DC12V | 3A |
○ |
DESKTOP, Inlet C8 | |
| DC15V | 2.7A | ||||||
| DC19V | 2.1A | PSE未取得/相談可 | |||||
| DC24V | 1.7A | PSE未取得/相談可 | |||||
| 6A-401DB** | AC90V～264V | DC12V | 3A | ○ | DESKTOP, Inret C14 | ||
| DC15V | 2.7A | ||||||
| DC19V | 2.1A | ||||||
| DC24V | 1.7A | ||||||
| 6A-401DN** | AC90V～264V | DC12V | 3A | ○ | DESKTOP, Inlet C6 | ||
| DC15V | 2.7A | ||||||
| DC19V | 2.1A | ||||||
| DC24V | 1.7A | ||||||
| 6A-401WU** | AC90V～264V | DC12V | 3A | ○ | WALL-MOUNT, UL/PSE AC PIN | ||
| DC15V | 2.7A | ||||||
| DC19V | 2.1A | ||||||
| DC24V | 1.7A | ||||||
| 6A-401WP** | AC90V～264V | DC12V | 3A | ○ | WALL-MOUNT, Interchangeable | ||
| DC15V | 2.7A | ||||||
| DC19V | 2.1A | ||||||
| DC24V | 1.7A | ||||||
| 50W | 6A-501DA05/06 | AC90V～264V | DC5V | 6.5A | ○ | DESKTOP, Inlet C8 | |
| DC5.95V | 6A | ||||||
| 6A-501DA** | AC90V～264V | DC12V | 4.2A | ○ | DESKTOP, Inlet C8 | ||
| DC15V | 3.34A | ||||||
| DC19V | 2.64A | PSE未取得/相談可 | |||||
| DC24V | 2.08A | PSE未取得/相談可 | |||||
| DC48V | 1.05A | ○ | |||||
| 6A-501DB** | AC90V～264V | DC12V | 4.2A | ○ | DESKTOP, Inlet C14 | ||
| DC15V | 3.34A | ||||||
| DC19V | 2.64A | ||||||
| DC24V | 2.08A | PSE未取得/相談可 | |||||
| DC48V | 1.05A | PSE未取得/相談可 | |||||
| 6A-501DN** | AC90V～264V | DC12V | 4.2A | ○ | DESKTOP, Inlet C6 | ||
| DC15V | 3.34A | ||||||
| DC19V | 2.64A | ||||||
| DC24V | 2.08A | PSE未取得/相談可 | |||||
| DC48V | 1.05A | PSE未取得/相談可 | |||||
| 60W | 6A-601DA** | AC90V～264V | DC12V | 5A | PSE未取得/相談可 | DESKTOP, Inlet C6 | |
| DC15V | 4A | PSE未取得/相談可 | |||||
| DC19V | 3.42A | ○ | |||||
| DC24V | 2.7A | ||||||
| 6A-601DB** | AC90V～264V | DC12V | 5A | PSE未取得/相談可 | DESKTOP, Inlet C6 | ||
| DC15V | 4A | PSE未取得/相談可 | |||||
| DC19V | 3.42A | ○ | |||||
| DC24V | 2.7A | ||||||
| 6A-601DN** | AC90V～264V | DC12V | 5A | PSE未取得/相談可 | DESKTOP, Inlet C6 | ||
| DC15V | 4A | PSE未取得/相談可 | |||||
| DC19V | 3.42A | ○ | |||||
| DC24V | 2.7A | ||||||
| 6A-602WM** | AC90V～264V | DC19V | 3.42A | ○ | WALL-MOUNT, Foldable type | ||
| DC24V | 2.7A | ||||||
| 6A-651DA24 | AC90V～264V | DC24V | 2.5A | ○ | DESKTOP, InletC8, PRT専用 | ||
| 90W | 6A-901DA** | AC90V～264V | DC12V | 7.5A | ○ | DESKTOP, Inlet C8 | |
| DC15V | 6A | ||||||
| DC19V | 4.7A | ||||||
| DC24V | 3.75A | ||||||
| DC48V | 1.875A | ||||||
| 6A-901DB** | AC90V～264V | DC12V | 7.5A | ○ | DESKTOP, Inlet C14 | ||
| DC15V | 6A | ||||||
| DC19V | 4.7A | ||||||
| DC24V | 3.75A | ||||||
| DC48V | 1.875A | ||||||
| 6A-901DN** | AC90V～264V | DC12V | 7.5A | ○ | DESKTOP, Inlet C6 | ||
| DC15V | 6A | ||||||
| DC19V | 4.7A | ||||||
| DC24V | 3.75A | ||||||
| DC48V | 1.875A | ||||||
| 120W | 6A-1C1DB** | AC90V～264V | DC12V | 8.33A |
PSE未取得/相談可 |
DESKTOP, Inlet C14 | |
| DC15V | 8A | ||||||
| DC18V | 6.66A | ||||||
| DC19V | 6.31A |
PSE2022.1月取得予定 |
|||||
| DC20V | 6A | ||||||
| DC24V | 5A | ||||||
| DC48V | 2.5A |
PSE未取得/相談可 |
|||||
| DC54V | 2.2A | ||||||
| 6A-1C1DN** | AC90V～264V | DC12V | 8.33A |
PSE未取得/相談可 |
DESKTOP, Inlet C6 | ||
| DC15V | 8A | ||||||
| DC18V | 6.66A | ||||||
| DC19V | 6.31A |
PSE2022.1月取得予定 |
|||||
| DC20V | 6A | ||||||
| DC24V | 5A | ||||||
| DC48V | 2.5A |
PSE未取得/相談可 |
|||||
| DC54V | 2.2A | ||||||
|
240W 280W |
6A-2E1DB** | AC90V～264V | DC12V | 20A | IEC61558PSE取得済 IEC62368PSE未取得 /相談可 |
DESKTOP, Inlet C14 | |
| DC24V | 12A | ||||||
| DC48V | 5A |
【家庭機器用】 IEC/EN 60335 & 61558対応
| 出力ワット | 型番 | 詳細資料 | 入力電圧 | 出力電圧 | 出力電流 | PSE取得状況(2021.10月) | 備考 |
| 6W | 6A-068WU** | AC90V～264V | DC5V | 1A | PSE取得予定 CB/CE取得済 |
WALL-MOUNT, UL/PSE AC PIN | |
| DC5V | 1.2A | ||||||
| DC5.95V | 1A | ||||||
| DC9V | 0.67A | ||||||
| DC12V | 0.5A | ||||||
| DC15V | 0.4A | ||||||
| DC18V | 0.33A | ||||||
| DC24V | 0.25A | ||||||
| 6A-068WP** | AC90V～264V | DC5V | 1A | PSE取得予定 CB/CE取得済 |
WALL-MOUNT, Interchangeable | ||
| DC5V | 1.2A | ||||||
| DC5.95V | 1A | ||||||
| DC9V | 0.67A | ||||||
| DC12V | 0.5A | ||||||
| DC15V | 0.4A | ||||||
| DC18V | 0.33A | ||||||
| DC24V | 0.25A | ||||||
| 12W | 6A-128WU** | AC90V～264V | DC5V | 2A | PSE取得予定 CB/CE取得済 |
WALL-MOUNT, UL/PSE AC PIN | |
| DC5.95V | 2A | ||||||
| DC12V | 1A | ||||||
| DC24V | 0.5A | ||||||
| DC48V | 0.25A | ||||||
| 6A-128WP** | AC90V～264V | DC5V | 2A | PSE取得予定 CB/CE取得済 |
WALL-MOUNT, Plug Type | ||
| DC5.95V | 1.1A | ||||||
| DC12V | 1A | ||||||
| DC24V | 0.8A | ||||||
| DC48V | 2A | ||||||
| 16W | 6A-161WP** (家電) |
|
AC90V～264V | DC5V | 2.6A | ○ | WALL-MOUNT, Interchangeable |
| DC9V | 1.7A | ||||||
| DC12V | 1.25A | ||||||
| DC15V | 1A | ||||||
| DC18V | 0.84A | ||||||
| DC20V | 0.75A | ||||||
| DC24V | 0.63A | ||||||
| 18W | 6A-181WP** (家電) |
|
AC90V～264V | DC5V | 2.6A | ○ | WALL-MOUNT, Interchangeable |
| DC9V | 1.7A | ||||||
| DC12V | 1.25A | ||||||
| DC15V | 1A | ||||||
| DC18V | 0.84A | ||||||
| DC20V | 0.75A | ||||||
| DC24V | 0.63A | ||||||
| 50W | 6A-508DA** | AC90V～264V | DC12V | 4.2A | PSE取得予定 CB/CE取得済 |
DESKTOP, Inlet C8 | |
| DC15V | 3.34A | ||||||
| DC19V | 2.64A | ||||||
| DC24V | 2.08A | ||||||
| DC48V | 1.05A | ||||||
| 6A-508DB** | AC90V～264V | DC12V | 4.2A | PSE取得予定 CB/CE取得済 |
DESKTOP, Inlet C14 | ||
| DC15V | 3.34A | ||||||
| DC19V | 2.64A | ||||||
| DC24V | 2.08A | ||||||
| DC48V | 1.05A | ||||||
| 6A-508DN** | AC90V～264V | DC12V | 4.2A | PSE取得予定 CB/CE取得済 |
DESKTOP, Inlet C6 | ||
| DC15V | 3.34A | ||||||
| DC19V | 2.64A | ||||||
| DC24V | 2.08A | ||||||
| DC48V | 1.05A | ||||||
| 60W | 6A-608DA** | AC90V～264V | DC12V | 5A | PSE取得予定 CB/CE取得済 |
DESKTOP, Inlet C8 | |
| DC15V | 4A | ||||||
| DC19V | 3.42A | ||||||
| DC24V | 2.7A | ||||||
| 6A-608DB** | AC90V～264V | DC12V | 5A | PSE取得予定 CB/CE取得済 |
DESKTOP, Inlet C14 | ||
| DC15V | 4A | ||||||
| DC19V | 3.42A | ||||||
| DC24V | 2.7A | ||||||
| 6A-608DN** | AC90V～264V | DC12V | 5A | PSE取得予定 CB/CE取得済 |

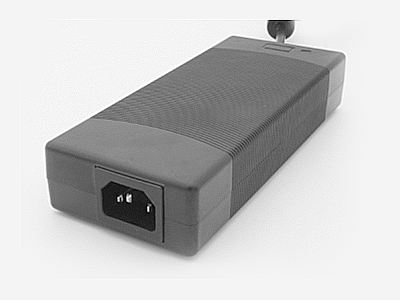

DESKTOP, Inlet C6 | ||
| DC15V | 4A | ||||||
| DC19V | 3.42A | ||||||
| DC24V | 2.7A |
【医療機器用】 IEC/EN/UL/CUL 60601対応
| 出力ワット | 型番 | 詳細資料 | 入力電圧 | 出力電圧 | 出力電流 | PSE取得状況(2021.10月) | 備考 |

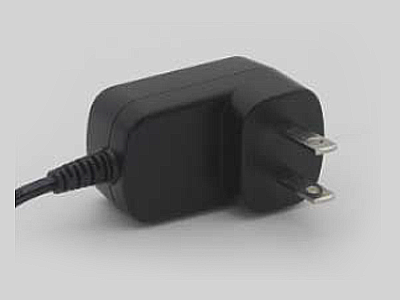

| 10W | 6A-107WP05B | AC90V～264V | DC5V | 2A | PSE未取得/相談可 | WALL-MOUNT, USB Inlet | |

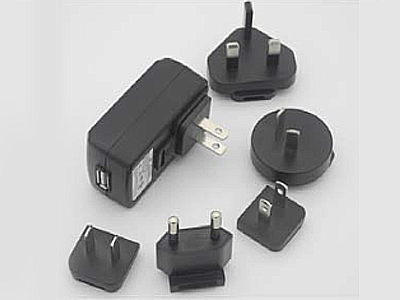

| 6A-107WP** | AC90V～264V | DC5V | 2A | PSE未取得/相談可 | WALL-MOUNT, Interchangeable | ||
| DC9V | 1.2A | ||||||
| DC12V | 1.1A | ||||||
| 40W | 6A-407WU** | AC90V～264V | DC5V | 6A | PSE未取得/相談可 | WALL-MOUNT, UL/PSE AC PIN | |
| DC9V | 3.88A | ||||||
| DC12V | 3A | ||||||
| DC24V | 1.66A | ||||||
| DC48V | 0.83A | ||||||
| 6A-407WP** | AC90V～264V | DC5V | 6A | PSE未取得/相談可 | WALL-MOUNT, Interchangeable | ||
| DC9V | 3.88A | ||||||
| DC12V | 3A | ||||||
| DC24V | 1.66A | ||||||
| DC48V | 0.83A |

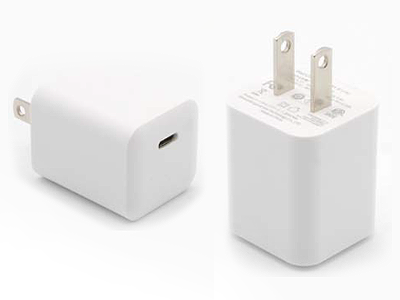

【PD電源】 USB Type-C Power Delivery ADAPTOR, IEC/EN/UL/CUL 62368 & 60950対応
| 出力ワット | 型番 | 詳細資料 | 入力電圧 | 出力電圧 | 出力電流 | PSE取得状況(2021.10月) | 備考 |
| 15～18W | TYPE-C181C | AC90V～264V | DC5V | 3A | PSE未取得/相談可 | WALL-MOUNT, Foldable 48×48×28mm | |
| DC9V | 2A | ||||||
| DC12V | 1.5A | ||||||
| 15～30W | TYPE-C301C | AC90V～264V | DC5V | 3A | PSE未取得/相談可 | WALL-MOUNT, Foldable 53×53×28mm | |
| DC9V | 3A | ||||||
| DC12V | 2.5A | ||||||
| DC15V | 2A | ||||||
| DC20V | 1.5A | ||||||
| 15～45W | TYPE-C451C | AC90V～264V | DC5V | 3A | PSE未取得/相談可 | WALL-MOUNT, Foldable 58×58×29mm | |
| DC9V | 3A | ||||||
| DC12V | 3A | ||||||
| DC15V | 3A | ||||||
| DC20V | 2.25A | ||||||
| 15～60W | TYPE-C601C | AC90V～264V | DC5V | 3A | PSE未取得/相談可 | WALL-MOUNT, Foldable 65.5×65.5×29mm | |
| DC9V | 3A | ||||||
| DC12V | 3A | ||||||
| DC15V | 3A | ||||||
| DC20V | 3A | ||||||
| 20W | 9N-201WU00 |
PDF |
AC90V～264V | DC5V | 3A | 〇 | WALL-MOUNT, UL/PSE AC PIN 38.3×31.4×30mm |
| DC9V | 2.2A | ||||||
| DC12V | 1.67A |
【ワイヤレス充電・給電ソリューション】
＊カスタム対応となります。別途お問合せ下さい。
